Back-Up Home Power True 220 Volt AC Power: Not Modified Sine Wave

Single Computer UPS Special

ECO 600VA Line Interactive UPS @ R600-00

- Automatic Voltage Regulator, Step Square Wave, USB, Power Manager Lite Software
Tel/Fax Surge Protection, Intelligent Battery Monitoring System, 20 Min on Single PC

SOHO Range Back-Up 220 Volt Home UPS Power Units

UPS Unit Only

Prices are subject to confirmation

• 600 VA Full Sine Wave ( 500 watt continuous ) UPS     -   R3600-00
• 800 VA Full Sine Wave ( 650 watt continuous ) UPS     -   R4200-00
• 1500 VA Full Sine Wave ( 1200 watt continuous ) UPS   -   R6100-00


• Larger UPS Units for Home or Office Use

UPS Backup Power Unit Extra's

• Battery Enclosure , optional castors for mobility   - R850-00 to R1150-00 design dependant
• 30 Amp Sealed Lead Acid 12 Volt Battery ( Maintenance Free )   - R850-00
• 102 Amp Hour Sealed Silver Calcium / Lead Acid Battery 12 Volt Battery ( Maintenance Free )   - R2600-00
• 225 Amp deep cycle batteries 6 Volt Battery @ R2200-00
• Black Pressed Metal Wheel Housing    - R900-00 to R2000-00 ( Size dependant and made to order )
• High Quality Indoor/Outdoor Powder Coated Steel Housing   - R800-00 to R8600-00 design dependant

Typical Unit applications in Power Failures

Standby Times are based on using 100 Amp Hour Car or Deep Cycle Batteries in Units
Sealed Maintenance Free Batteries are recommended if unit is going to be installed in your living space

• 600 watt     -   Provide 10 Hour standby and 40 Operations of your existing door and gate or enter your house and have enough energy to watch TV for 2 - 4 hours Unit can run a fridge/freezer as well as your TV simultaneously. A 2 or 3 energy efficient lights can also be run at the same time



• 800 watt     -   10 Hour Standby and 40 operations of your door & gate motor, watch TV for up to 4 hours. A 800 watt unit can power a typical fridge/freezer and a chest freezer as well as your TV simultaneously.  A 100 Amp Hour Battery will power all of those appliances for an hour


• 1400 watt   -   24 volt system ( 2 off 12 Volt Batteries ) - 15 Hour Standby and 30 operations of your door & gate motor while watch TV for up to 8 hours, power indoor lights or if nothing else on the circuit you can use your normal 1400watt microwave on high for 30 minutes,  You can power your TV, Fridge, Freezer and Garage / Gate Motor as well as some lights for 2 hours simultaneously with 2 100 Amp Hour Batteries




Kevin Series 1400 watt and 800 / 600 watt Home UPS Range

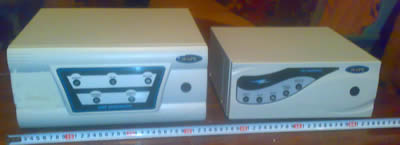

1400 watt UPS unit on the left is 330 mm wide by 300 mm deep by 160 mm high

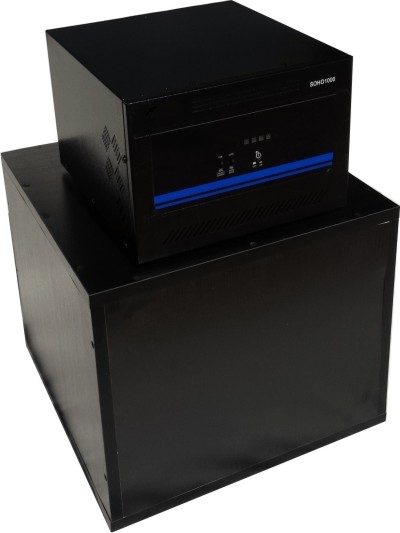

600Va, 800Va and 1500Va SOHO Range





1. housing contains 2 Deep Cycle Batteries and can be moved around where required.


2. Can be supplied in Black or Varnished Finish


3. Castors can be added to make unit mobile





Simply Connect Unit to one 12 Volt Battery in the case of the 600 / 800 Va range
or to two 12 Volt Batteries for the 1500 Va Home UPS Range
and enjoy 220 Volts True Sine Wave ( Standard ) electric power.
Fit a multi-plug or an extension cord to output and enjoy 220 Volts wherever you need it.

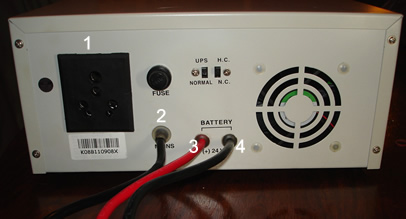

1. True Sine Wave 220 Volt AC Output ( Standard SA plug fitting )
2. Cord To Mains to Keep batteries automatically recharged
3. To Positive of 12 volt car type battery terminal
4. To Negative of 12 volt car type battery terminal


All home power units standby and power supply time can easily be increased by connecting an additional 12 volt car battery or batteries.
